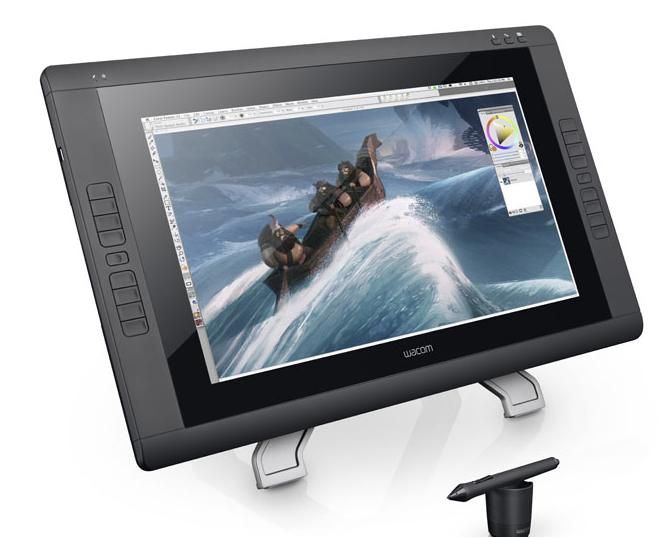

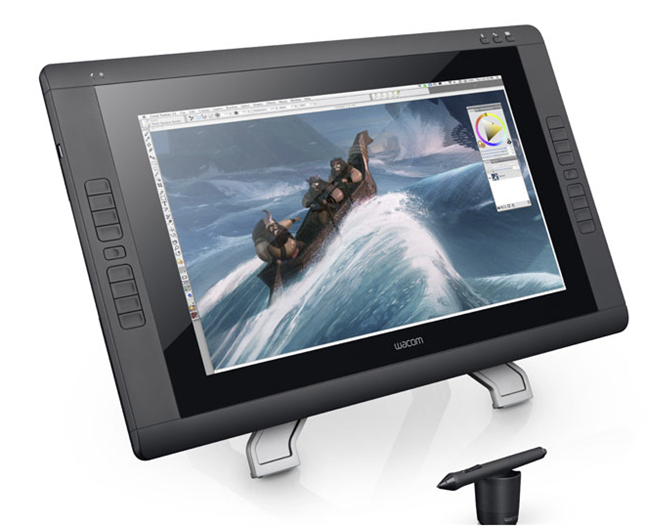

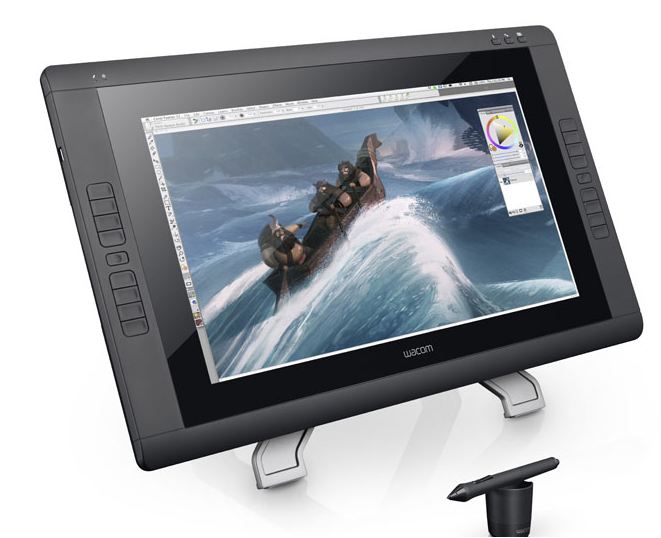

Cintiq 22HD.
Pioneers cross borders, discover new fields, push limits: and professional creative pioneers
do so with the Cintiq 22HD. Work directly and naturally on-screen, speeding up your workflow
and increasing your creative productivity as an illustrator, designer, photographer or artist -
with the new features of Cintiq 22HD, such as the 21.5" high definition display, industry-leading
pen input technology, ExpressKeys and Touch Strips.
Key features
- Work naturally, intuitively and gain productivity - sketch, paint, design and edit directly on the screen.
- The 21,5" HD display features wide format, full HD resolution and an extra wide viewing angle.
- Ambidextrous design.
- Pressure- and tilt-sensitive pen to replicate canvas effects as well as paint brush effectssuch as line weight, opacity and exposure.
- Advanced tip sensor featuring a low pen activation force to capture even the most subtlenuances of pressure.
- Touch Strips with Touch Strip toggle buttons to control up to four specific functionssuch as brush size, zooming, scrolling and on-screen canvas rotation.
- Sixteen ExpressKeysTM, Touch Strips and Radial menus for time-saving customisable access to one-touch shortcuts and functions.
GENERAL SPECIFICATIONS
- Dimensions: 650 x 400 x 55 mm, excl. stand
- Weight: 15.3 kg, incl. stand 8.5 kg, excl. stand

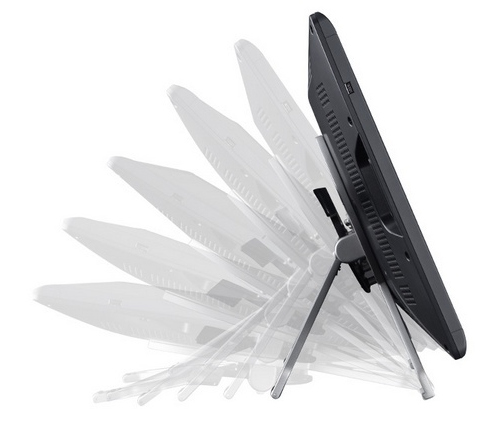

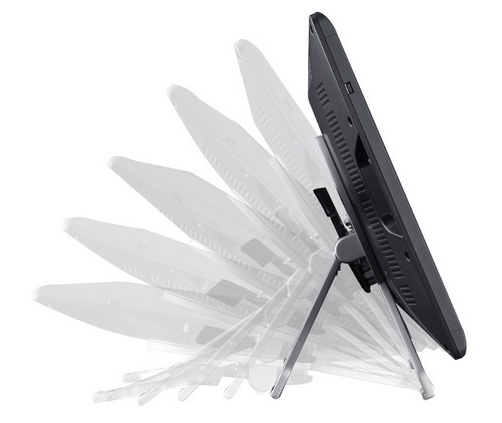

- Stand: completely removable, rotation up to 180° left/right, incline 10°/65°
- Interfaces: DVI, VGA, USB
- Power management: VESA DPMS
- Maximum power consumption: 42 W, 0.5 W in sleep mode, 0.5 W in off mode
- Supported operating systems Windows® (32/64 bit): 7, VistaTM, XP Macintosh®: OS X, version 10.4 or later
DISPLAY
- Type: a-SI Active Matrix TFT LCD (H-IPS)
- Screen size: (diagonal) 546.1 mm (21.5 in)
- Display area: 475.2 x 267.3 mm (18.7 x 10.5 in)
- Aspect ratio: 16:9
- Resolution: Full HDTV (1920 x 1080 pixels)
- Pixel pitch: 0.25 x 0.25 mm
- Colours: 16.7 million
- Brightness: 230 cd/m2
- Contrast ratio: 1000:1
- Response rate: 14 ms
- Viewing angle (horizontal/vertical): 178°/178°
- Cover plate: tempered etched glass with anti-glare coating
- Plug and Play: DDC 2B, DDC/CI
- Input video connector: DVI-I (29 pin), DVI-A (VGA)
PEN
- Technology: electromagnetic resonance method
- Active area: 479.2 x 271.3 mm (18.9 x 10.7 in)
- Resolution: 0.005 mm per point (5080 lpi)
- Coordinate accuracy: ± 0.5 mm, centre
- Reading height: 5 mm, centre
- Report rate: 133 points per second
- Pressure levels: 2048
TABLET
- Technology: electromagnetic resonance method
- Active area: 479.2 x 271.3 mm (18.9 x 10.7 in)
- Resolution: 0.005 mm per point (5080 lpi)
- Coordinate accuracy: ± 0.5 mm, centre
- Report rate: 133 points per second
POWER ADAPTER
- Input voltage: AC 100 - 240 V, 50/60 Hz
- Output voltage: DC 12 V
GRAPHICS CARD
- Type any graphics card with DVI or VGA connection (DVI connection recommended)
